Home / Battery Products / 6F22
1 / 3

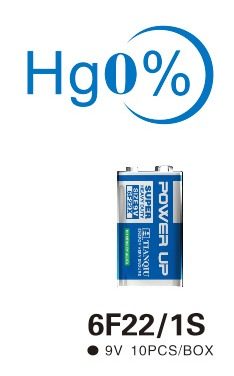

6F22 Zn-MnO₂ battery product photo
Zn-MnO₂

6F22 Battery

6F22 Zn-MnO₂ 9V. 320mAh (2.88Wh) capacity, 9V nominal — factory-direct from TIANQIU with OEM custom label & packaging, compliant with EU 2023/1542.

6F22 Zn-MnO₂ 9V — a 9V Zn-MnO₂ battery supplied factory-direct by TIANQIU, documented at 320mAh (2.88Wh) capacity. Every unit ships with UL, CE and EU 2023/1542 documentation, and the model is available for wholesale orders or OEM production under your own brand. Request the data sheet or a sample to confirm fit before ordering.
ULCEEU 2023/1542
0% mercury OEM / custom label MOQ & quote on request
At a glance

What is a 6F22 battery?

6F22 is a 9V Zn-MnO₂ button cell rated 320mAh (2.88Wh). Alkaline zinc-manganese dioxide cells deliver 1.5 V with a long shelf life, which makes them the everyday choice for low to medium drain devices such as toys, torches, meters and thermometers. TIANQIU manufactures and supplies it factory-direct, with OEM label and packaging.

Nominal voltage9V
ChemistryZn-MnO₂
Rated capacity320mAh (2.88Wh)
Specifications

What are the specs of a 6F22 battery?

Battery NameZn-MnO₂ 6F22 9V battery (non-rechargeable)
Model6F22
CategoryPortable battery
Chemistry systemZn-MnO₂
Trade / BrandTIANQIU/No-brand/OEM brands
Shelf LifeTwo years under normal storage conditions
Production DateAccording to customer requirements, generally printed on the battery body:PD MM-YYYY or PD MM/YYYY or PD MM/YY
Country of OriginChina

Alkaline zinc-manganese dioxide cells deliver 1.5 V with a long shelf life, which makes them the everyday choice for low to medium drain devices such as toys, torches, meters and thermometers. The 6F22 is produced on our own lines in China and can be supplied as a bare cell, on a blister card or in a printed box. Each is marked for 6F22 and ships with its own EU declaration of conformity.

Same family

Other Zn-MnO₂ cells in the range with a comparable capacity — swap only when the holder and the voltage allow it.

ModelChemistryNominal voltageTypical capacity
R03Zn-MnO₂1.5V400mAh (0.6Wh)
LR44Zn-MnO₂1.5V118mAh
LR43Zn-MnO₂1.5V86mAh
Documents for the 6F22: EU declaration of compliance TQ-EUDOC-6F22-20260701 · tested to IEC 60086-1:2021, IEC 60086-2:2021, IEC 60086-5:2021. Datasheet and declaration links are in Related documents.
Performance

How does the 6F22 perform?

TypeApprox. Weight Aluminum film/MetalCapacityApplication duration - radio
Normal34.0g320mAh24.0 hours
Capacity & Application duration test condition: 620Ω 2h/day to 5.4V @ 20±2℃
Approx. weight only for reference
Materials

What raw materials does the 6F22 contain?

ManganeseGraphite
Safety & Compliance

Is the 6F22 compliant with EU 2023/1542?

6F22 is supplied under EU Regulation 2023/1542. Each shipment carries the EU declaration of conformity (No. TQ-EUDOC-6F22-20260701), tested against IEC 60086-1:2021, IEC 60086-2:2021, IEC 60086-5:2021, and an MSDS.
CE marking
CE marking
Separate collection
Separate collection
Keep out of reach
Keep out of reach
Do not recharge
Do not recharge
Ordering

What do buyers ask before ordering the 6F22?

How long does a 6F22 battery last?
6F22 is rated 320mAh — Capacity & Application duration test condition: 620Ω 2h/day to 5.4V @ 20±2℃. Service life in your device depends on the load and the cut-off voltage, so send us the device and we will size the cell for it.
What is inside a 6F22 battery?
The 6F22 is built from Manganese, Graphite — a Zn-MnO₂ system at 9V, rated 320mAh, about 34.0g. The material list belongs to this model's technical file, and the MSDS for the chemistry comes with the documentation set.
How long can a 6F22 be stored?
Our storage statement for the 6F22 reads: Two years under normal storage conditions. Keep the cells in the original packaging; the storage and transport guidance that applies to this 9V Zn-MnO₂ model goes out with the shipment paperwork.
Is the 6F22 rechargeable?
No — the 6F22 is a primary (non-rechargeable) cell. Charging a primary cell can cause leakage or rupture, so replace it rather than recharge it. If your application needs recharging, ask us for the rechargeable range.
Which documents come with a 6F22 order?
Each 6F22 consignment carries its own EU declaration of conformity (reference TQ-EUDOC-6F22-20260701) and an MSDS. Transport documentation is issued for the consignment as the destination market requires.
How do I order the 6F22 in bulk?
Send the model, your annual quantity and the packaging format. First orders start from 50 cartons per product line, and printing on the cell, blister card and box is done in our own plant with your logo and barcode.

How do I get 6F22 wholesale pricing?

Factory-direct with OEM custom label & packaging. Samples available.

Downloads

Which documents are available for the 6F22?
