Button Cell & Coin Batteries

Button Cell & Coin Battery Manufacturer

Factory-direct CR lithium, AG alkaline and SR silver-oxide button cells — 0% mercury, 15 interchangeable models, OEM custom label.

Button cells direct from the factory in three chemistries: CR lithium at 3V, AG alkaline and SR silver-oxide at 1.55V, across 15 interchangeable models. Every cell is 0% mercury, and all three lines are available with OEM custom labelling and your own retail packaging.

Models

Mercury

CR Range

Browse All Button Cells OEM Button Cells

Compare Chemistries

How do LR, CR and SR button cells compare?

Chemistry	Voltage	Key Benefit	Typical Use
Lithium (CR)	3.0V	High energy, low self-discharge	Key fobs, CMOS, remotes, AirTag
Alkaline (AG / LR)	1.5V	Budget, everyday	Toys, watches, calculators
Silver Oxide (SR)	1.55V	Steady voltage, long life	Watches, medical devices

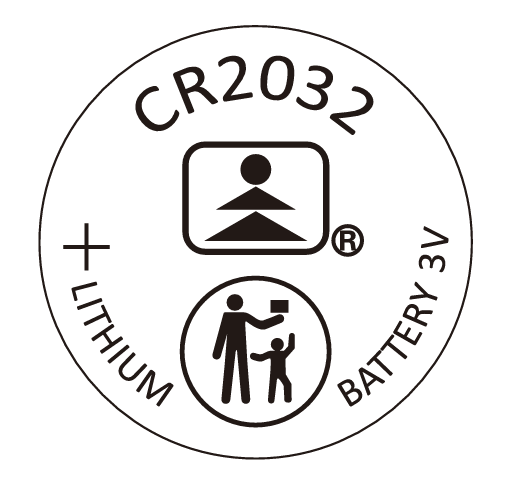

What is the CR2032 lithium coin cell used for?

The best-selling 3.0V button cell: 20mm x 3.2mm, 190mAh ~ 255mAh, 0% mercury, compatible with 5004LC / ECR2032 / KCR2032 / DL2032.

Capacity	MAD	App. duration
190mAh / 0.57Wh	950hours	17.0hours
210mAh / 0.63Wh	1050hours	18.0hours
220mAh / 0.66Wh	1150hours	19.0hours

EU Declaration No. TQ-EUDOC-CR2032-20260418 · Compliant with Regulation (EU) 2023/1542 · One year after delivery under normal storage, 98% of initial capacity maintained.

CR2032 Battery CR2025 Battery CR2450 Battery Key Fob Batteries

Cross Reference

Which button cell numbers are equivalent?

Buyers usually arrive with the number printed on the old cell (or the device manual). Match it in the table below; if your number is not listed, send us a photo of the cell and we will identify the equivalent.

Model	Chemistry	Voltage	Size D x H	Capacity	Equivalent / replacement numbers
CR2032	Lithium	3.0V	20mm x 3.2mm	190mAh ~ 255mAh	5004LC · ECR2032 · KCR2032 · DL2032
LR44	Alkaline	1.5V	11.6mm x 5.4mm	118mAh	AG13 · A76 · G13A · L1154
CR2025	Lithium	3.0V	20mm x 2.5mm	130mAh ~ 185mAh	ECR2025 · 5003LC · DL2025
CR2450	Lithium	3.0V	24.5mm x 5.0mm	550mAh ~ 620mAh	ECR2450 · DL2450
AG13	Alkaline	1.5V	11.6mm x 5.4mm	118mAh	LR44 · A76 · G13A · L1154
LR41	Alkaline	1.5V	7.9mm x 3.6mm	34mAh	AG3 · L736 · V3GA
CR2016	Lithium	3.0V	20mm x 1.6mm	75mAh ~ 100mAh	ECR2016 · 5000LC · DL2016
CR1632	Lithium	3V	16mm x 3.2mm	140mAh	ECR1632 · DL1632
CR1220	Lithium	3.0V	12.5mm x 2.0mm	38mAh (0.114Wh)	ECR1220 · 5012LC · DL1220
SR44	Silver Oxide	1.55V	11.6mm x 5.4mm	175mAh	SR44W · 357 · 303
SR626	Silver Oxide	1.55V	6.8mm x 2.6mm	27mAh	SR626SW · 377 · 376
377	Silver Oxide	1.55V	6.8mm x 2.6mm	24mAh	SR626SW · SR626 · 376
371	Silver Oxide	1.55V	9.5mm x 2.1mm	38mAh	SR920SW · 370
364	Silver Oxide	1.55V	6.8mm x 2.1mm	18mAh	SR621SW · AG1
LR1130	Alkaline	1.5V	11.6mm x 3.1mm	56mAh	LR1130H · AG10 · LR54 · 189 · GP89A · V10GA

Also produced on request: CR2477 · CR1620 · CR1616 · CR1216 · CR1212 · LR1120 and other LR/AG sizes — ask for the spec sheet.

Applications

Where are button cells used?

Car Key Fob Batteries

CR2032 & CR2025 for Nissan, Honda, Toyota & more.

car key fob battery replacement →

Watch Batteries

377, 371, 364, SR626SW & silver-oxide watch cells.

watch battery replacement →

CMOS / Motherboard Batteries

CR2032 for Dell, HP, ASUS motherboards & laptops.

CMOS battery replacement →

Guide

Button Cell Batteries: LR vs CR vs SR Explained

LR, CR and SR cover almost every button cell. How they differ in voltage, life and stability — with the AG13 = LR44 = 357 chain and live specs.

→

FAQ

What do buyers ask about button cells?

How do I find the right button cell?

Match the number printed on your old cell (or in the device manual) in the cross-reference table on this page — e.g. LR44 = AG13 = A76 = 357. Each model page also lists its own compatibility list.

What button cell sizes do you manufacture?

28 models across three chemistries: lithium CR (3.0V), alkaline AG/LR (1.5V) and silver oxide SR (1.55V).

Are your button cells mercury-free?

Yes. We produce 0% mercury alkaline button cells and mercury-free lithium & silver-oxide button cells on Japanese MITSUBISHI full-automatic lines.

What voltage is a CR2032?

A CR2032 is a 3.0V lithium coin cell, {cr2032.diameter} diameter x {cr2032.thickness}, with {cr2032.capacity} capacity.

Can I get custom label & packaging?

Yes. Custom brand label, blister and packaging for OEM / ODM and private-label button cell projects.

How do I get button cell wholesale pricing?

0% mercury button cells with OEM custom label & packaging. Get a quote today.

Bulk Button Cells Custom Label

Button cell models

1.5V / 3.0V

LR & CR chemistry

0% Hg

Mercury-free

31 yrs

Factory since 1994

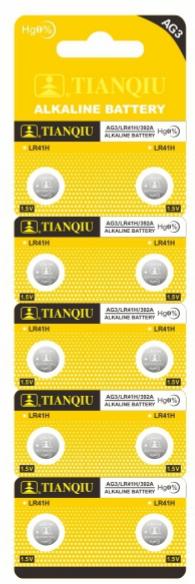

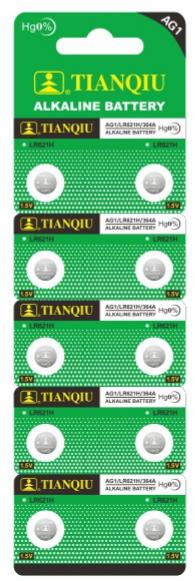

Packing Details

What packaging is standard for button cells?

Retail-ready packs and carton specs — customize the card count for your brand.

Packing No	Model	Dim D×H (mm)	Pcs/Card	Inner	Outer	Gross (kg)
AG0SP10	AG0	5.8 × 2.1	10	200	10000	9.7
AG1SP10	AG1	6.8 × 2.1	10	200	10000	10.5
AG2SP10	AG2	7.9 × 2.6	10	200	10000	12
AG3SP10	AG3	7.9 × 3.6	10	200	10000	13.7
AG4SP10	AG4	6.8 × 2.6	10	200	10000	10.9
AG5SP10	AG5	7.9 × 5.4	10	200	10000	16.8
AG6SP10	AG6	9.5 × 2.1	10	200	10000	13.2
AG7SP10	AG7	9.5 × 2.6	10	200	10000	14.4
AG8SP10	AG8	11.6 × 2.1	10	200	10000	15.8
AG9SP10	AG9	9.5 × 3.6	10	200	10000	16.6
AG10SP10	AG10	11.6 × 3.1	10	200	10000	19.3
AG11SP10	AG11	7.9 × 2.1	10	200	10000	11.3
AG12SP10	AG12	11.6 × 4.2	10	200	10000	23
AG13SP10	AG13	11.6 × 5.4	10	200	10000	27.7
23ASP5	23A	10 × 28.3	5	100	1000	10.4
27ASP5	27A	8 × 28.5	5	100	1000	6.8

Available Models

Which button cell models do you manufacture?

Browse the full button-cell range. Models with a full specification sheet link to their detail page; others are available on request.

Lithium Coin Cells (CR)
