Home / Battery Products / R03
1 / 8

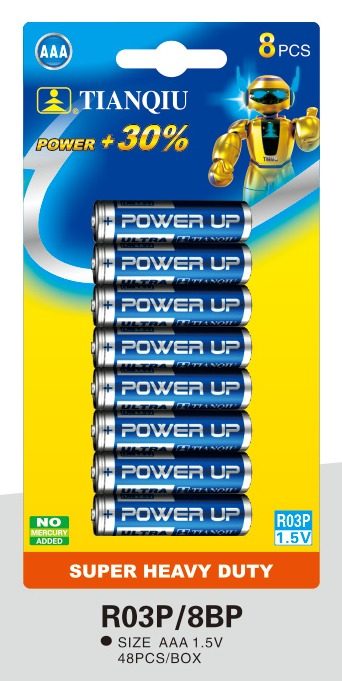

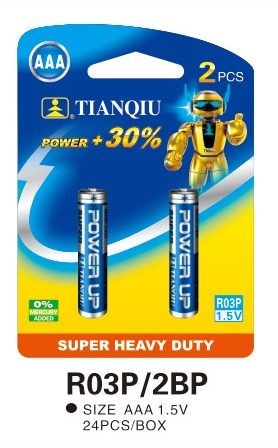

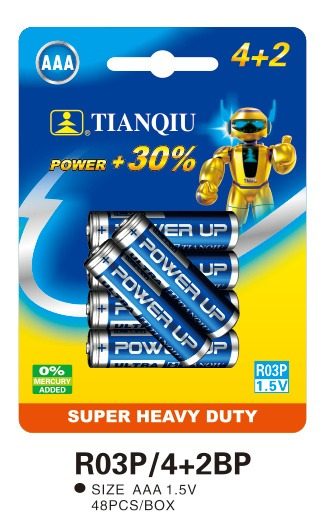

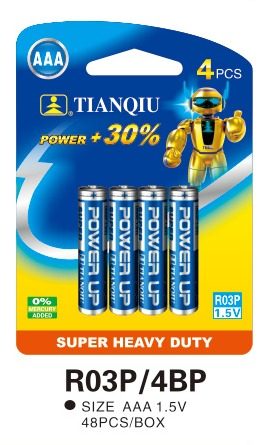

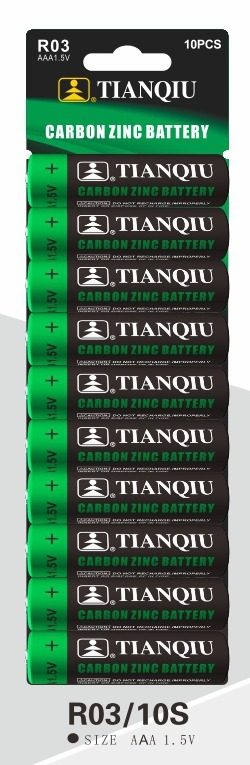

R03 Zn-MnO₂ battery product photo
Zn-MnO₂

R03 Battery

R03 Zn-MnO₂ Cylindrical. 400mAh (0.6Wh) capacity, 1.5V nominal — factory-direct from TIANQIU with OEM custom label & packaging, compliant with EU 2023/1542.

R03 Zn-MnO₂ Cylindrical — a 1.5V Zn-MnO₂ battery supplied factory-direct by TIANQIU, documented at 400mAh (0.6Wh) capacity. Every unit ships with UL, CE and EU 2023/1542 documentation, and the model is available for wholesale orders or OEM production under your own brand. Request the data sheet or a sample to confirm fit before ordering.
ULCEEU 2023/1542
0% mercury OEM / custom label MOQ & quote on request
At a glance

What is a R03 battery?

R03 is a 1.5V Zn-MnO₂ button cell rated 400mAh (0.6Wh). Zinc-carbon cells are the economical 1.5 V option for low-drain devices — clocks, remote controls and calculators — where a shorter service life is acceptable and price matters most. TIANQIU manufactures and supplies it factory-direct, with OEM label and packaging.

Nominal voltage1.5V
ChemistryZn-MnO₂
Rated capacity400mAh (0.6Wh)
Specifications

What are the specs of a R03 battery?

Battery NameZn-MnO₂ R03 battery (non-rechargeable)
ModelR03
CategoryPortable battery
Chemistry systemZn-MnO₂
Trade / BrandTIANQIU/No-brand/OEM brands
Shelf LifeThree years under normal storage conditions
Production DateAccording to customer requirements, generally printed on the battery body:PD MM-YYYY or PD MM/YYYY or PD MM/YY
Country of OriginChina

Zinc-carbon cells are the economical 1.5 V option for low-drain devices — clocks, remote controls and calculators — where a shorter service life is acceptable and price matters most. The R03 is produced on our own lines in China and can be supplied as a bare cell, on a blister card or in a printed box. Each is marked for R03 and ships with its own EU declaration of conformity.

Same family

Other Zn-MnO₂ cells in the range with a comparable capacity — swap only when the holder and the voltage allow it.

ModelChemistryNominal voltageTypical capacity
6F22Zn-MnO₂9V320mAh (2.88Wh)
6LR61Zn-MnO₂9V620mAh ~ 640mAh
LR44Zn-MnO₂1.5V118mAh
Documents for the R03: EU declaration of compliance TQ-EUDOC-R03-20260701 · tested to IEC 60086-1:2021, IEC 60086-2:2021, IEC 60086-5:2021. Datasheet and declaration links are in Related documents.
Performance

How does the R03 perform?

TypeApprox. WeightCapacityApplication duration - radio
PVC/Aluminum film7.5g400mAh21.0 hours
Metal8.5g400mAh21.0 hours
Capacity & Application duration test condition: 75Ω 4h/day to 0.9V @ 20±2℃
Approx. weight only for reference
Materials

What raw materials does the R03 contain?

ManganeseGraphite
Safety & Compliance

Is the R03 compliant with EU 2023/1542?

R03 is supplied under EU Regulation 2023/1542. Each shipment carries the EU declaration of conformity (No. TQ-EUDOC-R03-20260701), tested against IEC 60086-1:2021, IEC 60086-2:2021, IEC 60086-5:2021, and an MSDS.
CE marking
CE marking
Separate collection
Separate collection
Keep out of reach
Keep out of reach
Do not recharge
Do not recharge
Ordering

What do buyers ask before ordering the R03?

How long does a R03 battery last?
R03 is rated 400mAh — Capacity & Application duration test condition: 75Ω 4h/day to 0.9V @ 20±2℃. Service life in your device depends on the load and the cut-off voltage, so send us the device and we will size the cell for it.
What is inside a R03 battery?
The R03 is built from Manganese, Graphite — a Zn-MnO₂ system at 1.5V, rated 400mAh, about 7.5g. The material list belongs to this model's technical file, and the MSDS for the chemistry comes with the documentation set.
How long can a R03 be stored?
Our storage statement for the R03 reads: Three years under normal storage conditions. Keep the cells in the original packaging; the storage and transport guidance that applies to this 1.5V Zn-MnO₂ model goes out with the shipment paperwork.
Is the R03 rechargeable?
No — the R03 is a primary (non-rechargeable) cell. Charging a primary cell can cause leakage or rupture, so replace it rather than recharge it. If your application needs recharging, ask us for the rechargeable range.
Which documents come with a R03 order?
Each R03 consignment carries its own EU declaration of conformity (reference TQ-EUDOC-R03-20260701) and an MSDS. Transport documentation is issued for the consignment as the destination market requires.
How do I order the R03 in bulk?
Send the model, your annual quantity and the packaging format. First orders start from 50 cartons per product line, and printing on the cell, blister card and box is done in our own plant with your logo and barcode.

How do I get R03 wholesale pricing?

Factory-direct with OEM custom label & packaging. Samples available.

Downloads

Which documents are available for the R03?
