Home / Battery Products / LR03
1 / 8

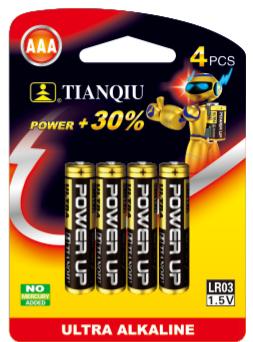

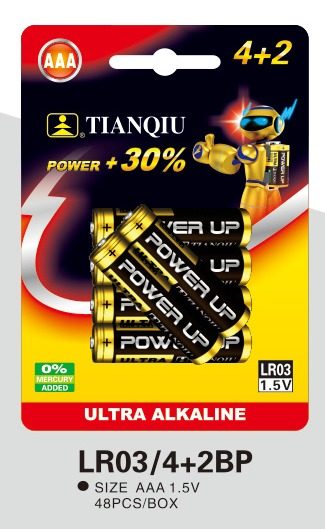

LR03 Zn-MnO₂ battery product photo
Zn-MnO₂

LR03 Battery

LR03 Alkaline Zn-MnO₂ Cylindrical. 1020mAh ~ 1260mAh capacity, 1.5V nominal — factory-direct from TIANQIU with OEM custom label & packaging, compliant with EU 2023/1542.

LR03 Alkaline Zn-MnO₂ Cylindrical — a 1.5V Zn-MnO₂ battery supplied factory-direct by TIANQIU, documented at 1020mAh ~ 1260mAh capacity. Every unit ships with UL, CE and EU 2023/1542 documentation, and the model is available for wholesale orders or OEM production under your own brand. Request the data sheet or a sample to confirm fit before ordering.
ULCEEU 2023/1542
0% mercury OEM / custom label MOQ & quote on request
At a glance

What is a LR03 battery?

LR03 is a 1.5V Zn-MnO₂ button cell rated 1020mAh ~ 1260mAh. Alkaline zinc-manganese dioxide cells deliver 1.5 V with a long shelf life, which makes them the everyday choice for low to medium drain devices such as toys, torches, meters and thermometers. TIANQIU manufactures and supplies it factory-direct, with OEM label and packaging.

Nominal voltage1.5V
ChemistryZn-MnO₂
Rated capacity1020mAh ~ 1260mAh
Specifications

What are the specs of a LR03 battery?

Battery NameAlkaline Zn-MnO₂ LR03 battery (non-rechargeable)
ModelLR03
CategoryPortable battery
Chemistry systemZn-MnO₂
Trade / BrandTIANQIU/No-brand/OEM brands
Shelf LifeFive years under normal storage conditions
Production DateAccording to customer requirements, generally printed on the battery body:PD MM-YYYY or PD MM/YYYY or PD MM/YY
Country of OriginChina

Alkaline zinc-manganese dioxide cells deliver 1.5 V with a long shelf life, which makes them the everyday choice for low to medium drain devices such as toys, torches, meters and thermometers. The LR03 is produced on our own lines in China and can be supplied as a bare cell, on a blister card or in a printed box. Each is marked for LR03 and ships with its own EU declaration of conformity.

Same family

Other Zn-MnO₂ cells in the range with a comparable capacity — swap only when the holder and the voltage allow it.

ModelChemistryNominal voltageTypical capacity
R6PZn-MnO₂1.5V900mAh (1.35Wh)
6LR61Zn-MnO₂9V620mAh ~ 640mAh
R03Zn-MnO₂1.5V400mAh (0.6Wh)
Documents for the LR03: EU declaration of compliance TQ-EUDOC-LR03-20260622 · tested to IEC 60086-1:2021, IEC 60086-2:2021, IEC 60086-5:2021. Datasheet and declaration links are in Related documents.
Performance

How does the LR03 perform?

TypeApprox. WeightCapacityApplication duration - digital audio
Blue - Basic10.3g1020mAh18.0 hours
Golden - Normal11.0g1200mAh21.0 hours
Black - Extra11.1g1230mAh22.5 hours
Ultral11.2g1260mAh24.5 hours
Capacity test condition: 75Ω 4h/day to 0.9V @ 20±2℃
Application duration - digital audio test condition: 50mA 1h/day to 0.9V @ 20±2℃
Materials

What raw materials does the LR03 contain?

ManganeseGraphiteCopper
Safety & Compliance

Is the LR03 compliant with EU 2023/1542?

LR03 is supplied under EU Regulation 2023/1542. Each shipment carries the EU declaration of conformity (No. TQ-EUDOC-LR03-20260622), tested against IEC 60086-1:2021, IEC 60086-2:2021, IEC 60086-5:2021, and an MSDS.
CE marking
CE marking
Separate collection
Separate collection
Keep out of reach
Keep out of reach
Do not recharge
Do not recharge
Ordering

What do buyers ask before ordering the LR03?

How long does a LR03 battery last?
LR03 is rated 1020mAh — Capacity test condition: 75Ω 4h/day to 0.9V @ 20±2℃. Service life in your device depends on the load and the cut-off voltage, so send us the device and we will size the cell for it.
What is inside a LR03 battery?
The LR03 is built from Manganese, Graphite, Copper — a Zn-MnO₂ system at 1.5V, rated 1020mAh, about 10.3g. The material list belongs to this model's technical file, and the MSDS for the chemistry comes with the documentation set.
How long can a LR03 be stored?
Our storage statement for the LR03 reads: Five years under normal storage conditions. Keep the cells in the original packaging; the storage and transport guidance that applies to this 1.5V Zn-MnO₂ model goes out with the shipment paperwork.
Is the LR03 rechargeable?
No — the LR03 is a primary (non-rechargeable) cell. Charging a primary cell can cause leakage or rupture, so replace it rather than recharge it. If your application needs recharging, ask us for the rechargeable range.
Which documents come with a LR03 order?
Each LR03 consignment carries its own EU declaration of conformity (reference TQ-EUDOC-LR03-20260622) and an MSDS. Transport documentation is issued for the consignment as the destination market requires.
How do I order the LR03 in bulk?
Send the model, your annual quantity and the packaging format. First orders start from 50 cartons per product line, and printing on the cell, blister card and box is done in our own plant with your logo and barcode.

How do I get LR03 wholesale pricing?

Factory-direct with OEM custom label & packaging. Samples available.

Downloads

Which documents are available for the LR03?
